The Republic P-47 Thunderbolt was a World War II era fighter aircraft produced by the United States from 1941 through 1945. Its primary armament was eight .50-caliber machine guns and in the fighter-bomber ground-attack role it could carry five-inch rockets or a bomb load of 2,500 pounds (1,103 kg). When fully loaded, the P-47 weighed up to eight tons, making it one of the heaviest fighters of the war. The P-47 was designed around the powerful Pratt & Whitney R-2800 Double Wasp engine, which was also used by two U.S. Navy/U.S. Marine Corps fighters, the Grumman F6F Hellcat and the Vought F4U Corsair. The Thunderbolt was effective as a short-to medium-range escort fighter in high-altitude air-to-air combat and ground attack in both the European and Pacific theaters.

The P-47 was one of the main United States Army Air Forces (USAAF) fighters of World War II, and also served with other Allied air forces, including those of France, the United Kingdom, and the Soviet Union. Mexican and Brazilian squadrons fighting alongside the USAAF also flew the P-47.

The armored cockpit was relatively roomy and comfortable and the bubble canopy introduced on the P-47D offered good visibility. A present-day U.S. ground-attack aircraft, the Fairchild Republic A-10 Thunderbolt II, takes its name from the P-47.[Note 1]

Development[]

P-43 Lancer / XP-47B[]

Republic P-43 Lancer

American pre-war fighter Republic P-43 Lancer

P-47 040315-F-9999G-029

P-47 firing its M2 machine guns during night gunnery

The P-47 Thunderbolt was a design of Russian immigrant of Georgian ethnicity Alexander Kartveli, and was to replace the Seversky P-35 that was developed earlier by Russian immigrant Alexander P. de Seversky.[Note 2] Both had fled from their homeland to escape the Bolsheviks.[3][Note 3] In 1939, Republic Aviation designed the AP-4 demonstrator powered by a Pratt & Whitney R-1830 radial engine with a belly-mounted turbocharger. A small number of Republic P-43 Lancers were built but Republic had been working on an improved P-44 Rocket with a more powerful engine, as well as on the AP-10 fighter design. The latter was a lightweight aircraft powered by the Allison V-1710 liquid-cooled V-12 engine and armed with eight .50 in (12.7 mm) M2 Browning machine guns. The United States Army Air Corps (USAAC) backed the project and gave it the designation XP-47.

In the spring of 1940, Republic and the USAAC concluded that the XP-44 and the XP-47 were inferior to Luftwaffe fighters. Republic tried to improve the design, proposing the XP-47A but this failed. Kartveli then designed a much larger fighter, which was offered to the USAAC in June 1940. The Air Corps ordered a prototype in September as the XP-47B. The XP-47A, which had little in common with the new design, was abandoned. The XP-47B was of all-metal construction (except for the fabric-covered tail control surfaces) with elliptical wings, with a straight leading edge that was slightly swept back. The air-conditioned cockpit was roomy and the pilot's seat was comfortable—"like a lounge chair", as one pilot later put it. The canopy doors hinged upward. Main and auxiliary self-sealing fuel tanks were placed under the cockpit, giving a total fuel capacity of 305 U.S. gal (1,155 L).

P-47D-40 R 2800 side

A P-47 engine with the cowling removed. Uncompressed air enters through an intake under the engine and is carried to the turbosupercharger behind the pilot via the silver duct at the bottom. The olive-green pipe returns the compressed air to the engine[3]

Power came from a Pratt & Whitney R-2800 Double Wasp two-row 18-cylinder radial engine producing 2,000 hp (1,500 kW)—the same engine that would power the prototype Vought XF4U-1 fighter to just over 400 mph (644 km/h) in October 1940—with the Double Wasp on the XP-47B turning a four-bladed Curtiss Electric constant-speed propeller of 146 in (3.7 m) in diameter. The loss of the AP-4 prototype to an engine fire ended Kartveli's experiments with tight-fitting cowlings, so the engine was placed in a broad cowling that opened at the front in a "horse collar"-shaped ellipse. The cowling admitted cooling air for the engine, left and right oil coolers, and the turbosupercharger intercooler system. The engine exhaust gases were routed into a pair of wastegate-equipped pipes that ran along each side of the cockpit to drive the turbosupercharger turbine at the bottom of the fuselage, about halfway between cockpit and tail. At full power, the pipes glowed red at their forward ends and the turbine spun at 21,300 rpm.[5] The complicated turbosupercharger system with its ductwork gave the XP-47B a deep fuselage, and the wings had to be mounted in a relatively high position. This was difficult since long-legged main landing gear struts were needed to provide ground clearance for the enormous propeller. To reduce the size and weight of the undercarriage struts and so that wing-mounted machine guns could be fitted, each strut was fitted with a mechanism by which it telescoped out 9 in (23 cm) when extended.

The XP-47B was very heavy compared with contemporary single-engined fighters, with an empty weight of 9,900 lb (4,490 kg), or 65 per cent more than the YP-43. Kartveli said, "It will be a dinosaur, but it will be a dinosaur with good proportions".[6] The armament was eight .50 caliber (12.7 mm) "light-barrel" Browning AN/M2 machine guns, four in each wing. The guns were staggered to allow feeding from side-by-side ammunition boxes, each with 350 rounds. All eight guns gave the fighter a combined rate of fire of approximately 100 rounds per second.[7]

The XP-47B first flew on 6 May 1941 with Lowry P. Brabham at the controls. Although there were minor problems, such as some cockpit smoke that turned out to be due to an oil drip, the aircraft proved impressive in its early trials. It was lost in an accident on 8 August 1942 but before that mishap, the prototype had achieved a level speed of 412 mph (663 km/h) at 25,800 ft (7,864 m) altitude and had demonstrated a climb from sea level to 15,000 ft (4,600 m) in five minutes.[8]

P-47B, XP-47E, and XP-47F[]

P-47b

P-47B-RE 41-5905 assigned to the 56th FG at Teterboro Airport. Note the windows behind the cockpit and the sliding canopy, an indication that this was an early production P-47B.

The XP-47B gave the newly reorganized United States Army Air Forces cause for both optimism and apprehension. While possessing good performance and firepower, the XP-47B had its share of teething problems:

  • Its sheer size and limited ground-propeller clearance in a fuselage-level attitude made for challenging takeoffs which required long runways—the pilot had to hold the tail low until considerable speed was attained on the initial run.
  • The sideways-opening canopy covers had a tendency to jam.
  • The multiple-gun installation, with its tight fit and cramped ammunition belt tracks, experienced jamming problems, especially during and after hard maneuvering.
  • Maneuverability was less than desired when compared with the Supermarine Spitfire and Messerschmitt Bf 109.
  • The ignition system arced at high altitude.
  • Access to the rear engine accessory pad was difficult due to the short engine mount used.
  • At high altitude the ailerons "snatched and froze".
  • At high speeds the control loads were deemed excessive.

Republic addressed the problems by fitting a rearwards-sliding canopy that could be jettisoned in an emergency, a pressurized ignition system and all-metal control surfaces. The deficient maintenance access to the Double Wasp radial on the B-series subtypes had to wait until the P-47C introduced a new engine mount. While the engineers worked to get their "dinosaur" to fly right, the USAAF ordered 171 P-47Bs. An engineering prototype P-47B was delivered in December 1941, with a production prototype following in March 1942 and the first production model provided in May. Republic continued to improve the design as P-47Bs were produced and although all P-47Bs had the sliding canopy and the new General Electric turbosupercharger regulator for the R-2800-21 engine, features such as all-metal control surfaces were not standard at first. A modification on the P-47B, also required for the early marks of the U.S. Navy's Grumman F4F Wildcat and Grumman F6F Hellcat was the radio mast behind the cockpit that was slanted forward to maintain the originally designed antenna wire length in spite of the new sliding canopy.

The P-47B led to a few "one-off" variants. In September 1942, the 171st and last P-47B (41-6065) was also used as a test platform as XP-47E to evaluate the R-2800-59 engine, a pressurized cockpit with a hinged canopy and eventually a new Hamilton Standard propeller. The plans for production were canceled after increased emphasis on low-level operations over Europe.[9][10] Another P-47B was later fitted with a new laminar flow wing in search of higher performance and redesignated XP-47F. In 1942 an example of the potentially 3,000 hp Fairey P-24 Monarch engine along with its Fairey Battle test bed was shipped to Wright Field for testing with a view to possible installation in the P-47. After around 250 hours of test flying of the P-24 engined Battle at Wright Field, the idea to re-engine the P-47 with the P-24 was abandoned.[11]

P-47C[]

56thfightergroup-61fs-p47s

Republic P-47C-2-RE Thunderbolts of the 61st Fighter Squadron, 56th Fighter Group 41-6265 identifiable, 1943.

Production changes gradually addressed the problems with P-47B and the USAAF decided that the P-47 was worthwhile, quickly following the initial order for P-47Bs with another order for 602 more examples of an improved P-47C, with the first of this variant delivered in September 1942. The initial P-47Cs were very similar to the P-47B. Initial deliveries of the Thunderbolt to the USAAF were to the 56th Fighter Group, which was also on Long Island. The 56th served as an operational evaluation unit for the new fighter. Teething problems continued. A Republic test pilot was killed in the fifth production P-47B when it went out of control in a dive on 26 March 1942 and crashed, due to failure of the tail assembly, after fabric-covered tail surfaces ballooned and ruptured. Revised rudder and elevator balance systems and other changes corrected these problems.[12]

Similar to the P-47B, the initial P-47C featured strengthened all-metal control surfaces, an upgraded GE turbosupercharger regulator and a short vertical radio mast. After the manufacture of a block of 57 P-47Cs, production moved to the P-47C-1, which had an 8 in (20 cm) fuselage extension forward of the cockpit at the firewall to correct center of gravity problems, ease engine maintenance and allow installation of a new engine mount. There were a number of other changes, such as revised exhausts for the oil coolers and fixes to brakes, undercarriage and electrical systems, as well as a redesigned rudder and elevator balance. The 55 P-47C-1s were followed by 128 P-47C-2s with a centerline hardpoint with under-fuselage shackles for either a 500 lb (227 kg) bomb or a 200 U.S. gal (758 l, 167 Imp gal) fuel tank that conformed to the underside of the fuselage. The main production P-47C sub-variant was the P-47C-5 which introduced a new whip antenna. With the use of pressurized drop tanks, the P-47C was able to extend its range on missions beginning 30 July 1943.[8] By the end of 1942, most of the troubles with the P-47 had been worked out and P-47Cs were sent to England. The 56th FG was sent overseas to join the Eighth Air Force, whose 4th and 78th Fighter Groups would be equipped with the Thunderbolt as well.

P-47D / P-47G and XP-47K / XP-47L[]

P-47D "razorback" Thunderbolt

Republic P-47D Thunderbolt.

Refinements of the Thunderbolt continued, leading to the P-47D, which was the most produced version with 12,558 built. The "D" model actually consisted of a series of evolving production blocks, the last of which were visibly different from the first.

The first P-47Ds were actually the same as P-47Cs. Republic could not produce Thunderbolts fast enough at its Farmingdale plant on Long Island, so a new plant was built at Evansville, Indiana. The Evansville plant first built a total of 110 P-47D-1-RAs, which were completely identical to P-47C-2s. Farmingdale aircraft were identified by the -RE suffix after the block number, while Evansville aircraft were given the -RA suffix.

The P-47D-1 through P-47D-6, the P-47D-10, and the P-47D-11 successively incorporated changes such as the addition of more engine cooling flaps around the back of the cowl to reduce the engine overheating problems that had been seen in the field. Engines and engine subsystems saw refinement, (the P-47D-10 introduced the R-2800-63, replacing the R-2800-21 seen in previous P-47s) as did the fuel, oil and hydraulic systems. Additional armor protection was also added for the pilot.

The P-47D-15 was produced in response to requests by combat units for increased range. "Wet" (equipped with fuel plumbing) underwing pylons were introduced to allow a bomb or drop tank pressurized by vented exhaust air to be carried under each wing, in addition to the belly tank. Seven different auxiliary tanks were fitted to the Thunderbolt during its career:

  • 200 U.S. gallon (758 l) ferry tank: A conformal tub-shaped jettisonable tank made of paper, which barely cleared the ground on grass airfields, was used as an interim measure between 30 July and 31 August 1943.
  • 75 U.S. gallon(284 l) drop tank: A standardized, all-metal teardrop-shaped steel tank with a prominent protruding horizontal seam, initially produced for the P-39 Airacobra, was adapted to the P-47 beginning 31 August 1943. It was initially carried on the belly shackle, but was used in pairs in 1944 as underwing tanks, and adopted as a standard accessory in the US inventory.
  • 108 U.S. gallon (409 l) drop tank: A cylindrical paper tank of British design and manufacture, used as a belly tank beginning in September 1943 and a wing tank in April 1944.
  • 150 U.S. gallon (568 l) drop tank: A steel tank first used as a belly tank 20 February 1944, and an underwing tank 22 May 1944.
  • 215 U.S. gallon (810 l) drop tank: A wide, flat steel tank developed by VIII Service Command was first used in February 1945.
  • 165 U.S. gallon (625 l) drop tank: This tank, produced by Lockheed, could be used either as a fuel tank or as a napalm container.
  • 110 U.S. gallon (416 l) drop tank: This tank was similar in shape to the 75 gallon drop tank, but was larger. It could also be used as a napalm container.
Republic P-47D-22-RE Thunderbolt (sn 42-25969)

P-47D-22-RE 42-25969
8th AF / 361st FG / 376th FG
flown by Capt. John D. Duncan.

The tanks made of plastic-impregnated (laminated) paper could not store fuel for an extended period of time, but they worked quite well for the time it took to fly a single mission. These tanks were cheaper, lighter, and were useless to the enemy if recovered after being dropped—not only did they break apart, but they did not provide the enemy with any reusable materials that could be scavenged for their own war effort. With the increased fuel capacity, the P-47 was now able to perform escort missions deep into enemy territory. A drawback to their use was that fighters could not land with the tanks in place because of the hazard of rupture and explosion. Fighters recalled from a mission or that did not jettison their paper tanks for some reason were required to drop them into a designated "dump" area at their respective fields, resulting in substantial losses of aviation fuel.

The P-47D-16, D-20, D-22 and D-23 were similar to the P-47D-15 with minor improvements in the fuel system, engine subsystems, (the P-47D-20 introduced the R-2800-59 engine) a jettisonable canopy, and a bulletproof windshield. Beginning with the block 22 aircraft, the original narrow-chorded Curtiss propeller was replaced by propellers with larger blades, the Evansville plant switching to a new Curtiss propeller with a diameter of 13 ft (3.96 m) and the Long Island plant using a Hamilton Standard propeller with a diameter of 13 ft 2 in (4.01 m). With the bigger propellers having barely 6 in (152 mm) of ground clearance, Thunderbolt pilots had to learn to be careful on takeoffs to keep the tail down until they obtained adequate ground clearance, and on landings to flare the aircraft properly. Failure to do so damaged both the propeller and the runway. A modification to the main gear legs was installed to extend the legs via an electric motor (un-extending before retraction) to accommodate the larger propeller diameter.

P47brazil

Brazilian P-47 after impact with chimney; the pilot managed to land safely

Even with two Republic plants rolling out the P-47, the U.S. Army Air Forces still were not getting as many Thunderbolts as they wanted. Consequently, an arrangement was made with Curtiss to build the aircraft under license in a plant in Buffalo, New York. The Curtiss plant experienced serious problems and delays in producing Thunderbolts, and the 354 Curtiss-built fighters were relegated to stateside advanced flight training.[13] The Curtiss aircraft were all designated P-47G, and a "-CU" suffix was used to distinguish them from other production. The first P-47G was completely identical to the P-47C, the P-47G-1 was identical to the P-47C-1, while the following P-47G-5, P-47G-10, and P-47G-15 sub-variants were comparable to the P-47D-1, P-47D-5 and P-47D-10 respectively. Two P-47G-15s were built with the cockpit extended forward to just before the leading edge of the wing to provide tandem seating, designated TP-47G, essentially to provide a trainer variant. The second crew position was accommodated by substituting a much smaller main fuel tank. The "Doublebolt" did not go into production but similar modifications were made in the field to older P-47s, which were then used as squadron "hacks" (miscellaneous utility aircraft).

Bubbletop P-47s[]

Republic XP-47K

Republic XP-47K (42-8702)

All the P-47s produced to this point had a "razorback" canopy configuration with a tall fuselage spine behind the pilot, which resulted in poor visibility to the rear. The British also had this problem with their fighter aircraft, and had devised the bulged "Malcolm hood" canopy for the Spitfire as an initial solution. This type of canopy was fitted in the field to many North American P-51 Mustangs, and to a handful of P-47Ds. However, the British then came up with a much better solution, devising an all-round vision "bubble canopy" for the Hawker Typhoon. USAAF officials liked the bubble canopy, and quickly adapted it to American fighters, including the P-51 and the Thunderbolt. The first P-47 with a bubble canopy was a modified P-47D-5 completed in the summer of 1943 and redesignated XP-47K. Another older P-47D was modified to provide an internal fuel capacity of 370 U.S. gal (1,402 l) and given the designation XP-47L. The bubble canopy and increased fuel capacity were then rolled into production together, resulting in the block 25 P-47D (rather than a new variant designation). First deliveries of the P-47D-25 to combat groups began in May 1944.

It was followed by similar bubble-top variants, including the P-47D-26, D-27, D-28 and D-30. Improvements added in this series included engine refinements and the addition of dive recovery flaps. Cutting down the rear fuselage to accommodate the bubble canopy produced yaw instability, and the P-47D-40 introduced a vertical stabilizer extension in the form of a fin running from the vertical stabilizer to just behind the radio aerial. The fin fillet was often retrofitted in the field to earlier P-47D bubble-top variants. The P-47D-40 also featured provisions for 10 "zero length" launchers for 5 in (127 mm) High velocity aircraft rockets (HVARs), as well as the new K-14 computing gunsight. This was a license-built copy of the British Ferranti GGS Mark IID computing gyroscopic sight which allowed the pilot to dial in target wingspan and range, and would then move the gunsight reticle to compensate for the required deflection.

The bubbletop P-47s were nicknamed "Superbolts" by combat pilots in the field.[14]

Republic XP-47H

XP-47H

XP-47H / XP-47J[]

Republic made several attempts to further improve the P-47D:

Two XP-47Hs were converted. They were major reworkings of existing razorback P-47Ds to accommodate a Chrysler IV-2220-11 liquid-cooled 16-cylinder inverted vee engine. The plane reached 490 mph in level flight, but, with the end of the war, it never saw production.[15][better source needed]

Republic XP-47J three-quarter front view

XP-47J

The XP-47J began as a November 1942 request to Republic for a high-performance version of the Thunderbolt using a lighter airframe and an uprated engine with water injection and fan cooling. Kartveli designed a completely new aircraft fitted with a tight-cowled Pratt & Whitney R-2800-57 with a war emergency rating of 2,800 hp (2,090 kW), reduced armament of six 0.50 in (12.7 mm) machine guns, a new and lighter wing,[16] and many other changes. The only XP-47J was first flown in late November 1943 by Republic test pilot Mike Ritchie. Less than a year later it flew into the aviation history books marking a new milestone for speed.[17][page needed]

When fitted with a GE CH-5 turbosupercharger, the XP-47J achieved a top speed of 505 mph (440 kn, 813 km/h) in level flight on August 4, 1944 at 34,500 feet over a course in Farmingdale, New York, piloted by Mike Ritchie.[16] Ritchie's achievement was not exceeded until August 21, 1989, when Lyle Shelton piloted Rare Bear, a highly modified Grumman F8F Bearcat using the rival, near-55 litre displacement Wright Duplex-Cyclone radial engine from the same era (1937) as the Double Wasp, and set a new official FAI record at 523.586 mph.

P-47M[]

Republic P-47M-1 061020-F-1234P-035

Republic P-47M-1.

The P-47M was a more conservative attempt to come up with a higher-performance ("Sprint") version of the Thunderbolt, designed to chase V-1 flying bombs, done, in part, by reducing armament from eight .50-caliber Colt-Browning M2 machine guns to six.[18] In September 1944, four P-47D-27-RE airframes (42-27385/27388) were modified into prototype YP-47Ms by fitting the R-2800-57 engine and the GE CH-5 turbo-supercharger, a combination which could produce 2,800 hp (2,089 kW) at 32,500 ft (9,900 m) when using Wartime Emergency Power (water injection). Air brakes were added to the wing's lower surfaces to allow braking after a dive onto its prey. The YP-47M had a top speed of 473 mph (410 kn, 761 km/h) and it was put into limited production with 133 (sufficient for one group) built. However, the type suffered serious teething problems in the field due to the highly tuned engine. Engines were unable to reach operating temperatures and power settings and frequently failed in early flights from a variety of causes: ignition harnesses cracked at high altitudes, severing electrical connections between the magneto and distributor, and carburetor valve diaphragms also failed. Persistent oil tank ruptures in replacement engines were found to be the result of inadequate protection against saltwater corrosion during transshipment. In the end, it was simply errors made by the R-2800-57 model engine's manufacturers which led to these issues with the P-47M. By the time the bugs were worked out, the war in Europe was nearly over. However, P-47Ms still destroyed 15 enemy aircraft in aerial combat, normal results for any fighter type in March–May 1945 when aerial encounters with the Luftwaffe were rare. The entire production total of 130 P-47Ms were delivered to the 56th Fighter Group, and were responsible for all seven of that group's jet shoot-downs. Twelve were lost in operational crashes with the 56th Group resulting in 11 deaths, two after VE Day, and two (44-21134 on 13 April 1945 and 44-21230 on 16 April 1945) were shot down in combat (both by ground fire).

The second YP-47M (of the batch of four converted P-47Ds) was later fitted with new wings and served as the prototype for the P-47N.

P-47N[]

Republic P-47N-5 three ship formation 061020-F-1234P-037

Republic P-47N-5 in three ship formation.

The P-47N was the last Thunderbolt variant to be produced. It was designed as an escort fighter for the Boeing B-29 Superfortress bombers flying raids on the Japanese home islands. Increased internal fuel capacity and drop tanks had done much to extend the Thunderbolt's range during its evolution, and the only other way to expand the fuel capacity was to put fuel tanks into the wings. Thus, a new wing was designed with two 50 U.S. gallon (190 l) fuel tanks. The third YP-47M prototype (42-27387) was fitted with this wing and became the YP-47N; its designation was later changed to XP-47N. This redesigned aircraft first flew in July 1944. The redesign proved successful in extending the range to about 2,000 mi (3,200 km), and the squared-off wingtips improved the roll rate. The P-47N entered mass production with the R-2800-57 engine, and later used the upgraded R-2800-73 or -77. A total of 1,816 were built. The very last Thunderbolt to be built, a P-47N-25, rolled off the production line in October 1945.

At the end of production, a Thunderbolt cost $83,000 in 1945 U.S. dollars. A total of 15,636 Thunderbolts of all types were built.

Operational history[]

US service[]

By the end of 1942, P-47Cs were sent to England for combat operations. The initial Thunderbolt flyers, 56th Fighter Group, was sent overseas to join the 8th Air Force. As the P-47 Thunderbolt worked up to operational status, it gained a nickname: the "Jug" (because its profile was similar to that of a common milk jug of the time).[Note 4] Two Fighter Groups already stationed in England began introducing the Jugs in January 1943: the Spitfire-flying 4th Fighter Group, a unit built around a core of experienced American pilots who had flown in the RAF Eagle Squadrons prior to the US entry in the war; and the 78th Fighter Group, formerly flying P-38 Lightnings.

Francis Gabreski color photo in pilot suit

P-47 pilot Lt Col Francis S. "Gabby" Gabreski, 56th Fighter Group, leading ace of the 8th Air Force

Beginning in January 1943, Thunderbolt fighters were sent to the joint Army Air Forces – civilian Millville Airport in Millville, New Jersey in order to train civilian and military pilots.

The first P-47 combat mission took place 10 March 1943 when the 4th FG took their aircraft on a fighter sweep over France. The mission was a failure due to radio malfunctions. All P-47s were refitted with British radios, and missions resumed 8 April. The first P-47 air combat took place 15 April with Major Don Blakeslee of the 4th FG scoring the Thunderbolt's first air victory (against a Focke-Wulf Fw 190).

By mid-1943, the Jug was also in service with the 12th Air Force in Italy[21] and against the Japanese in the Pacific, with the 348th Fighter Group flying missions out of Port Moresby, New Guinea. By 1944, the Thunderbolt was in combat with the USAAF in all its operational theaters except Alaska.

P-47 gun harmonization 1945 page 35

One of several gun harmonization schemes used on the P-47. This one converged the eight guns into a point at about 1,100 ft (340 m).

Luftwaffe ace Heinz Bär said that the P-47 "could absorb an astounding amount of lead [from shooting at it] and had to be handled very carefully".[22] Although the North American P-51 Mustang replaced the P-47 in the long-range escort role in Europe, the Thunderbolt still ended the war with 3,752 air-to-air kills claimed in over 746,000 sorties of all types, at the cost of 3,499 P-47s to all causes in combat.[23] By the end of the war, the 56th FG was the only 8th Air Force unit still flying the P-47, by preference, instead of the P-51. The unit claimed 677.5 air victories and 311 ground kills, at the cost of 128 aircraft.[24] Lieutenant Colonel Francis S. Gabreski scored 28 victories,[25] Captain Robert S. Johnson scored 27 (with one unconfirmed probable kill leading to some giving his tally as 28),[26] and 56th FG Commanding Officer Colonel Hubert Zemke scored 17.75 kills.[Note 5] Despite being the sole remaining P-47 group in the 8th Air Force, the 56th FG remained its top-scoring group in aerial victories throughout the war.

With increases in fuel capacity as the type was refined, the range of escort missions over Europe steadily increased until the P-47 was able to accompany bombers in raids all the way into Germany. On the way back from the raids, pilots shot up ground targets of opportunity, and also used belly shackles to carry bombs on short-range missions, which led to the realization that the P-47 could perform a dual-function on escort missions as a fighter-bomber. Even with its complicated turbosupercharger system, its sturdy airframe and tough radial engine could absorb a lot of damage and still return home.

The P-47 gradually became the USAAF's primary fighter-bomber, by late 1943, early versions of the P-47D carrying 500 lb (227 kg) bombs underneath their bellies, mid production versions of the P-47D could carry 1000 lb bombs and M8 4.5 in (115 mm) under their wings or from the last version of the P-47D in 1944, 5 in (127 mm) High velocity aircraft rockets (HVARs, also known as "Holy Moses"). From D-Day until VE day, Thunderbolt pilots claimed to have destroyed 86,000 railroad cars, 9,000 locomotives, 6,000 armored fighting vehicles, and 68,000 trucks.[28] During Operation Cobra, in the vicinity of Roncey, P-47 Thunderbolts of the 405th Fighter group destroyed a German column of 122 tanks, 259 other vehicles, and 11 artillery pieces.[29]

Postwar service[]

With the end of World War II, orders for 5,934 were cancelled.[30] The P-47 continued serving with the U.S. Army Air Forces through 1947, the USAAF Strategic Air Command from 1946 through 1947, the active duty United States Air Force until 1949, and with the Air National Guard until 1953, receiving the designation F-47 in 1948.

P-47s served as spotters for rescue aircraft such as the OA-10 Catalina and Boeing B-17H. In 1950, P-47 Thunderbolts were used to suppress the declaration of independence in Puerto Rico by nationalists during the Jayuya Uprising.

The P-47 was not deployed to Korea for the Korean War. The North American P-51 Mustang was used by the USAF, mainly in the close air support role. Since the Mustang was more vulnerable to being shot down, (and many were lost to anti-aircraft fire), some former P-47 pilots suggested the more durable Thunderbolt should have been sent to Korea. However, the P-51D was available in greater numbers in the USAF and ANG inventories.[31]

Due to continued postwar service with U.S. military and foreign operators, a number of P-47s have survived to the present day, and a few are still flying.

The Cuban Air Force took delivery of 29 ex-USAF airframes and spares. By the late 1950s the P-47 was considered obsolete but were well suited for COIN tasks. Some fought Castro's rebellion.[citation needed]

P-47 in Allied, non-U.S. service[]

Republic P- 47D Thunderbolt ExCC

Royal Air Force Republic Thunderbolt Mark I

Avimage18a large

Lt. Jorge Paranhos Taborda, Brazilian P-47 pilot during World War II

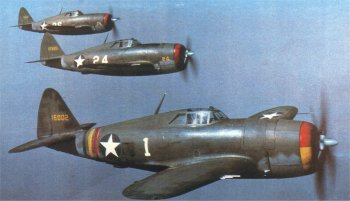

GAC P-47s of Brazil

Brazilian P-47s in World War II carried the Senta a Pua! squadron badge, along with the national insignia of Brazil painted over the USAAF's star and bar.

P-47D Thunderbolt 01097628 058 USAF

P-47D "Kathie" with 75-gallon drop tank buzzes the airfield at Bodney, England

P-47s were operated by several Allied air arms during World War II. The RAF received 240 razorback P-47Ds which they designated "Thunderbolt Mark I", and 590 bubbletop P-47D-25s, designated "Thunderbolt Mark IIs". With no need for another high-altitude fighter, the RAF adapted their Thunderbolts for ground attack, a task for which the type was well suited. Once the Thunderbolts were cleared for use in 1944, they were used against the Japanese in Burma by 16 RAF squadrons of the South East Asia Command from India. Operations with army support (operating as "cab ranks" to be called in when needed), attacks on enemy airfields and lines of communication, and escort sorties. They proved devastating in tandem with Spitfires during the Japanese breakout attempt at the Sittang Bend in the final months of the war. The Thunderbolts were armed with three 500 lb (227 kg) bombs or, in some cases, British "60 pound" (27 kg) RP-3 rocket projectiles. Long range fuel tanks[32] gave five hours of endurance. Thunderbolts flew escort for RAF Liberators in the bombing of Rangoon. Thunderbolts remained in RAF service until October 1946. Post-war RAF Thunderbolts were used in support of the Dutch attempts to reassert control of Batavia. Those squadrons not disbanded outright after the war re-equipped with British-built aircraft such as the Hawker Tempest.[33]

During the Italian campaign, the "1º Grupo de Caça da Força Aérea Brasileira" (Brazilian Air Force 1st Fighter Squadron) flew a total of 48 P-47Ds in combat (of a total of 67 received, 19 of which were backup aircraft). This unit flew a total of 445 missions from November 1944 to May 1945 over northern Italy and Central Europe, with 15 P-47s lost to German flak and five pilots being killed in action.[34] In the early 1980s, this unit was awarded the "Presidential Unit Citation" by the American government in recognition for its achievements in World War II.

From March 1945 to the end of the war in the Pacific—as Mexico had declared war on the Axis on May 22, 1942—the Mexican Escuadrón Aéreo de Pelea 201 (201st Fighter Squadron) operated P-47Ds as part of the U.S. 5th Air Force in the Philippines. In 791 sorties against Japanese forces, the 201st lost no pilots or aircraft to enemy action.[35]

The French Air Force received 446 P-47Ds from 1943. These aircraft saw extensive action in France and Germany and again in the 1950s during the Algerian War of Independence.

After World War II, the Italian Air Force (AMI) received 75 P-47D-25s sent to 5˚ Stormo, and 99 to the 51˚. These machines were delivered between 1947 and 1950. However, they were not well liked, as the Italian pilots were used to much lighter aircraft and found the controls too heavy. Nevertheless, the stability, payload and high speed were appreciated. Most importantly, the P-47 served as an excellent transition platform to heavier jet fighters, including the F-84 Thunderjet, starting in 1953.[36]

The type was provided to many Latin American air forces some of which operated it into the 1960s. Small numbers of P-47s were also provided to China, Iran, Turkey and Yugoslavia.

In Soviet service[]

The U.S. sent 203 P-47Ds to the Soviet Union.[37] In mid-1943, the Soviet high command showed an interest in the P-47B. Three P-47D-10-REs were ferried to the Soviet Air Forces (VVS) via Alaska in March 1944. Two of them were tested in April–May 1944. Test pilot Aleksey N. Grinchik noted the spacious cockpit with good ventilation and a good all-around view. He found it easy to fly and stable upon take-off and landing, but it showed excessive rolling stability and poor directional stability. Soviet engineers disassembled the third aircraft to examine its construction. They appreciated the high production standards and rational design well-suited to mass production, and the high reliability of the hard-hitting Browning machine guns. With its high service ceiling, the P-47 was superior to fighters operating on the Eastern front, yielding a higher speed above 30,000 feet (9,000 m). The Yakovlev Yak-9, Lavochkin La-5FN, Messerschmitt Bf 109G and Focke-Wulf Fw 190A outperformed the early model P-47 at low and medium altitude, where the P-47 had poor acceleration and performed aerobatics rather reluctantly. In mid-1944, 200 P-47D-22-REs and P-47D-27-REs were ferried to the USSR via Iraq and Iran. Many were sent to training units. Less than half reached operational units, and they were rarely used in combat.[38] The fighters were assigned to high-altitude air defense over major cities in rear areas. Unlike their Western counterparts, the VVS made little use of the P-47 as a ground attack aircraft, depending instead on their own widely produced—with 36,183 examples built during the war—special-purpose, armored ground-attack aircraft, the Ilyushin Il-2. At the end of the war, Soviet units held 188 P-47s.[38]

In German service[]

The Luftwaffe operated at least one captured P-47. In poor weather on 7 November 1943 while flying a P-47D-2-RA on a bomber escort mission, 2nd Lt. William E. Roach of 358th Fighter Squadron, 355th Fighter Group made an emergency landing on a German airfield. Roach was imprisoned at Stalag Luft I. The Thunderbolt was given German markings.[39]

  • T9+LK was probably used for several reconnaissance missions over England just before the D-Day invasion. It was recaptured in Göttingen in 1944 when the Germans were forced to make a rapid withdrawal to Bad Wörishofen.[citation needed]
  • T9+FK was the second of two P-47s used by 2/Versuchsverband Ob.d.L. In May 1945 it was recaptured at Bad Wörishofen.[citation needed]
  • YF+U is the Ex-358 FS plane. It was used in a Nazi propaganda film. Later was received the code 7+9 while under evaluation at Rechlin testing ground and used at demonstrations of the Zirkus Rosarius.[citation needed]

In Chinese/Taiwanese service[]

After World War II, the Chinese Nationalist Air Force received 102 P-47Ds used during the Chinese Civil War. The Chinese Communists captured five P-47Ds from the Chinese Nationalist forces. In 1948, the Chinese Nationalists employed 70 P-47Ds and 42 P-47Ns brought to Taiwan in 1952. P-47s were used extensively in aerial clashes over the Taiwan Strait between Nationalist and Communist aircraft.[40]

Flying the Thunderbolt[]

Aerial warfare[]

P-47-2

USAAF P-47D "Razorback" configuration.

Initial response to the P-47 praised its dive speed and high-altitude performance while criticizing its turning performance and rate of climb (particularly at low-to-medium altitudes). The turbosupercharger in the P-47 gave the powerplant its maximum power at 27,000 ft (8,230 m), and in the thin air above 30,000 ft (9,144 m), the Thunderbolt remained comparatively fast and nimble relative to other aircraft.[41]

The P-47 first saw action with the 4th Fighter Group. The Group's pilots were mainly drawn from the three British Eagle Squadrons who had previously flown the British Supermarine Spitfire Mark V, a much smaller and much more slender aircraft. At first, they viewed their new fighter with misgivings. It was huge; the British pilots joked that a Thunderbolt pilot could defend himself from a Luftwaffe fighter by running around and hiding in the fuselage. Optimized for high altitude work, the Thunderbolt had 5 feet (1.5 m) more wingspan, a quarter more wing area, about four times the fuselage volume, and nearly twice the weight of a Spitfire V.[42][43] One Thunderbolt pilot compared it to flying a bathtub around the sky. When his unit (4th Fighter Group) was equipped with Thunderbolts, ace Don Blakeslee said, referring to the P-47's vaunted ability to dive on its prey, "It ought to be able to dive. It certainly can't climb."[44] (Blakeslee's early-model P-47C had not been fitted with the new paddle blade propeller). The 4th Fighter Group's commander hated the P-47, and his prejudices filtered down to the group's pilots; the 4th had the fewest kills of any of the first three P-47 squadrons in Europe.[43]

The U.S. ace Jim Goodson, who had flown Spitfires with the RAF and flew a P-47 in 1943, at first shared the skepticism of other pilots for their "seven-ton milk-bottles". But Goodson learned to appreciate the P-47's potential: "There were many U.S. pilots who preferred the P-47 to anything else: they do not agree that the (Fw) 190 held an overall edge against it."[45]

Thunderbolt II 30 Sqn RAF at Jumchar 1945

RAF Thunderbolt Mk.II readying for a sortie over Burma. January 1945

The P-47's initial success in combat was primarily due to tactics, using rolls (the P-47 had an excellent roll rate) and energy-saving dive and zoom climbs from high altitude to outmaneuver German fighters. Both the Bf 109 and Fw 190 could, like the Spitfire, out-turn and out-climb the early model P-47s at low-to-medium altitude. Once paddle blade propellers were added to the P-47 in early 1944, climb performance improved significantly.[46] The Thunderbolt was the fastest-diving American aircraft of the war—it could reach speeds of 550 mph (480 kn, 885 km/h)[citation needed]. Some P-47 pilots claimed to have broken the sound barrier, but later research revealed that because of the pressure buildup inside the pitot tube at high speeds, airspeed readings became unpredictably exaggerated. But German pilots gradually learned to avoid diving away from a Thunderbolt. Kurt Bühligen, a high-scoring German fighter ace with 112 victories, recalled:

The P-47 was very heavy, too heavy for some maneuvers. We would see it coming from behind, and pull up fast and the P-47 couldn't follow and we came around and got on its tail in this way.[47]

The arrival of the new Curtiss paddle blade propeller significantly increased climb rate at lower altitudes and came as a surprise to German pilots who had resorted to steep climbs to evade pursuit by the P-47.[43] Other positive attributes included the P-47's ruggedness; it could sustain a large amount of damage and still be able to get its pilot back to base.[Note 6] With eight .50 in (12.7 mm) machine guns, the P-47 carried more firepower than other single-engined American fighters. P-47 pilots claimed 20 Luftwaffe Messerschmitt Me 262 jet fighters and four Arado Ar 234 jet bombers in aerial combat.

In the Pacific, Colonel Neel E. Kearby of the Fifth Air Force claimed 22 Japanese aircraft and was awarded the Medal of Honor for an action in which he downed six enemy fighters on a single mission. He was shot down and killed over Wewak in March 1944.[48]

Ground attack role[]

Republic P-47D-40-RE in flight firing rockets

Republic P-47D-40-RE 44-90386 in flight firing rockets

The P-47 proved to be a formidable fighter-bomber due to its good armament, heavy bomb load and ability to survive enemy fire. The P-47's survivability was due in part to its radial piston engine, which unlike comparable liquid-cooled engines, had a high tolerance for damage.[49] The Thunderbolt's eight .50 in (12.7 mm) machine guns were capable against lightly armored targets, although less so than cannon-armed aircraft of the day. In a ground attack role, the armor-piercing (AP), armor-piercing incendiary (API), and armor-piercing incendiary tracer (APIT) ammunition proved useful in penetrating thin-skinned and lightly armored German vehicles and exploding their fuel tanks, as well as occasionally damaging some types of enemy armored fighting vehicles (AFVs).[50]

P-47 pilots frequently carried two 500 lb (227 kg) bombs, using skip bombing techniques for difficult targets (skipping bombs into railroad tunnels to destroy hidden enemy trains was a favorite tactic).[51] The adoption of the triple-tube M10 rocket launcher[52] with M8 high-explosive 4.5 in (110 mm) rockets (each with an explosive force similar to a 105 mm artillery shell)—much as the RAF's Hawker Typhoon gained when first fitted with its own two quartets of underwing RP-3 rockets for the same purposes—significantly increased the P-47's ground attack capability.[53] Late in the war, the P-47 was retrofitted with more powerful 5 in (130 mm) HVAR rockets.

Operators[]

P47 Escuadron 201 mexico

Mexican P-47D Thunderbolt over the Philippines.

ThunderboltP47

A French Armée de l'air Republic P-47D Thunderbolt of Escadron de Chasse 3/3 "Ardennes".

Two P-47 Thunderbolts

Two P-47 Thunderbolts of IIAF over Tehran.

Flag of Bolivia Bolivia

Flag of Brazil Brazil

Flag of Chile Chile

Flag of the Republic of China Republic of China

Flag of the People's Republic of China People's Republic of China

Flag of Colombia Colombia

Flag of Cuba Cuba

Flag of the Dominican Republic Dominican Republic

Flag of Ecuador Ecuador

Flag of France France

Flag of Guatemala Guatemala

State Flag of Iran (1925) Iran

Flag of Italy Italy

Flag of Mexico Mexico

Flag of Nicaragua Nicaragua

Flag of Peru Peru

Flag of Portugal Portugal

Flag of the Soviet Union Soviet Union

Flag of Turkey Turkey

Flag of the United Kingdom United Kingdom

US flag 48 stars United States

Flag of Venezuela (1930-1954) Venezuela

Flag of SFR Yugoslavia Yugoslavia

Variants[]

Table of P-47 variants[67][68][69][70][71][72][73][74]
Variant Number built Serial number(s) Notes
XP-47 1 40-3051 Prototype; cancelled during construction
XP-47A 1 40-3052 Prototype; cancelled during construction
Total XP-47, XP-47A 2
XP-47B 1 40-3052 (serial number transferred from abortive XP-47A) Prototype; R-2800-21 engine
Total XP-47B 1
P-47B-RE 171 41-5895/6065 R-2800-21 engine; modified metal-covered ailerons; trim tabs; sliding canopy; windshield defroster; 41-5938 converted to XP-47F with larger laminar flow wing; 41-6065 converted to XP-47E with pressurized cockpit and hinged canopy
Total P-47B 171
P-47C-RE 58 41-6066/6123 R-2800-21 engine; strengthened tail surfaces
P-47C-1-RE 54 41-6124/6177 R-2800-21 engine; eight-inch extension added to fuselage forward of cockpit
P-47C-2-RE 128 41-6178/6305 R-2800-21 engine; belly shackle provided for bomb or fuel tank
P-47C-5-RE 362 41-6306/6667 R-2800-21 engine; new radio, instruments, and antenna; cockpit heater
Total P-47C 602
P-47D-1-RE 105 42-7853/7957 R-2800-21 engine; nearly identical to P-47C-2-RE; additional cowl flaps and pilot armor
P-47D-1-RA 114 42-22250/22363 R-2800-21 engine; the first variant of the P-47 built at Republic's new factory in Evansville, Indiana; identical to P-47D-1-RE
P-47D-2-RE 445 42-7958/8402 R-2800-21 engine; turbocharger shroud removed
P-47D-2-RA 200 42-22364/22563 R-2800-21 engine; identical to P-47D-2-RE
P-47D-3-RA 100 42-22564/22663 R-2800-21 engine; minor upgrade to D-2-RA
P-47D-4-RA 200 42-22664/22863 R-2800-21 engine; Evansville-built P-47D-5-RE
P-47D-5-RE 300 42-8403/8702 R-2800-21 engine; used General Electric C-21 supercharger and had provision for water injection; belly shackle for bomb or fuel tank reintroduced and was standard on all P-47s from then on; 42-8702 fitted with bubble canopy and redesigned XP-47K
P-47D-6-RE 350 42-74615/74964 R-2800-21 engine; minor changes to electrical system
P-47D-10-RE 250 42-74965/75214 New R-2800-63 engine and changes to water injection system
P-47D-11-RE 400 42-75215/75614 R-2800-63 engine; contained all features introduced between the D-5 and D-10; water injection linked to throttle lever
P-47D-11-RA 250 42-22864/23113 R-2800-63 engine; identical to P-47D-11-RE
P-47D-15-RE 446 42-75615/75814, 42-76119/76364 R-2800-63 engine; first model of P-47 with underwing pylons; stronger wings
P-47D-15-RA 157 42-23143/23299 R-2800-63 engine; 42-23297 and 42-23298 converted to XP-47H with Chrysler IV-2220-11 inverted-vee engines; identical to P-47D-15-RE
P-47D-16-RE 254 42-75865/76118 R-2800-63 engine; minor changes to fuel system
P-47D-16-RA 29 42-23114/23142 R-2800-63 engine; identical to P-47D-16-RE
P-47D-20-RE 299 42-25274/25322, 42-76365/76614 New R-2800-59 engine; modified underwing pylons; 42-76614 fitted with increased fuel capacity and bubble canopy as XP-47L
P-47D-20-RA 187 43-25254/25440 R-2800-59 engine; identical to P-47D-20-RE
P-47D-21-RE 216 42-25323/25538 R-2800-59 engine; changes to water injection system
P-47D-21-RA 224 43-25441/25664 Identical to P-47D-21-RE
P-47D-22-RE 850 42-25539/26388 R-2800-59 engine; Farmingdale factory switched to Hamilton Standard paddle-bladed propeller
P-47D-23-RA 889 42-27389/28188, 43-25665/25753 R-2800-59 engine; Evansville factory switched to Curtiss Electric paddle-bladed propeller
P-47D-25-RE 385 42-26389/26773 R-2800-59 engine; bubble canopy; fuel capacity increased from 305 to 370 gallons
P-47D-26-RA 250 42-28189/28438 R-2800-59 engine; identical to P-47D-25-RE
P-47D-27-RE 615 42-26774/27388 R-2800-59 engine; improved water injection system
P-47D-28-RE 750 44-19558/20307 R-2800-59 engine; Farmingdale factory switched to Curtiss Electric paddle-bladed propeller; radio compass added
P-47D-28-RA 1,028 42-28439/29466 R-2800-59 engine; Identical to P-47D-28-RE
P-47D-30-RE 800 44-20308/21107 R-2800-59 engine; Dive brakes added under wings
P-47D-30-RA 1,800 44-32668/33867, 44-89684/90283 R-2800-59 engine; Identical to P-47D-30-RE
P-47D-40-RA 665 44-90284/90483, 45-49090/49554 R-2800-59 engine; Dorsal fin added to vertical stabilizer
Total P-47D 12,558
P-47G-CU 20 42-24920/24939 P-47Gs were built by Curtiss and used for stateside training; the P-47G-CU was identical to the P-47C-RE
P-47G-1-CU 40 42-24940/24979 Identical to P-47C-1-RE
P-47G-5-CU 60 42-24980/25039 Identical to P-47D-1-RE
P-47G-10-CU 80 42-25040/25119 Identical to P-47D-5-RE
P-47G-15-CU 154 42-25120/25273 Identical to P-47D-10-RE; two converted to TP-47G trainer variant
Total P-47G 354
XP-47J 1 43-46952 Lightweight prototype; newly-built airframe; reduced armament
Total XP-47J 1
P-47M-1-RE 130 44-21108/21237 High-speed variant using R-2800-57 engine designed to combat German jet and rocket-powered aircraft
Total P-47M 130
P-47N-1-RE 550 44-87784/88333 Long-range variant designed for service in the Pacific Theater; R-2800-57 engine; larger wings with squared-off tips; increased fuel capacity; automation of some engine controls
P-47N-5-RE 550 44-88334/88883 R-2800-57 engine; "zero-length" stubs for 5-inch rockets; autopilot
P-47N-15-RE 200 44-88884/89083 R-2800-73 or -77 engine; new bomb rack and gunsight; autopilot not fitted to this model
P-47N-20-RE 200 44-89084/89283 R-2800-73 or -77 engine; backup fuel system added
P-47N-25-RE 167 44-89284/89450 R-2800-73 or -77 engine; strengthened wings and more automation of engine control systems
P-47N-20-RA 149 45-49975/50123 R-2800-73 or -77 engine; the final P-47Ns, and hence the final P-47s, were built by the Evansville factory
Total P-47N 1,816
Total, all types 15,636

Surviving aircraft[]

Specifications (P-47D-30 Thunderbolt)[]

Republic P-47N 3-side drawings

P-47N technical drawing

Data from[citation needed]

General characteristics

  • Crew: 1
  • Length: 36 ft 1 in (11.00 m)
  • Wingspan: 40 ft 9 in (12.42 m)
  • Height: 14 ft 8 in (4.47 m)
  • Wing area: 300 sq ft (28 m2)
  • Airfoil: Seversky S-3[75]
  • Empty weight: 10,000 lb (4,536 kg)
  • Gross weight: 12,731 lb (5,775 kg)
  • Max takeoff weight: 17,500 lb (7,938 kg)
  • Powerplant: 1 × Pratt & Whitney R-2800-59B 18-cylinder air-cooled radial piston engine, 2,600 hp (1,900 kW)
  • Propellers: 4-bladed constant-speed propeller

Performance

  • Maximum speed: 433 mph (697 km/h; 376 kn) at 29,000 ft (8,839 m)
  • Combat range: 800 mi (695 nmi; 1,287 km)
  • Ferry range: 1,800 mi (1,564 nmi; 2,897 km)
  • Service ceiling: 43,000 ft (13,106 m)
  • Rate of climb: 3,180 ft/min (16.2 m/s)
  • Wing loading: 42.43 lb/sq ft (207.2 kg/m2)
  • Power/mass: 0.204 hp/lb (0.335 kW/kg)

Armament

  • 8 × .50 in (12.7 mm) M2 Browning machine guns (3400 rounds)
  • Up to 2,500 lb (1,134 kg) of bombs
  • 10 × 5 in (127 mm) unguided rockets
  • In popular culture[]

    P-47 Thunderbolt 42-25068 2012 (7977124689)

    P-47 Thunderbolt 42-25068 at Duxford Air Show, 2012

    Broadcast radio interviews of several wartime P-47 pilots appear on the CD audiobook USAAF at War 1942–45, including an account by Lieutenant J.K. Dowling of ground support operations around Cherbourg in June 1944, and a group of four pilots from the 362nd Fighter Wing (Ninth Air Force) in conversation at their mess in Rouvres, France on 24 December 1944 during the Battle of the Bulge.[76]

    Laughter and Tears,[77] by Captain George Rarey, a posthumous publication of letters and sketches from a pilot in the 379th Air group flying P-47s based in England.

    Pilots would often claim that one could fly a P-47 through a brick wall and live. In the post-war era one Air National Guard Thunderbolt plowed into the second story of a factory, shearing off its wings, with the crumpled fuselage eventually coming to rest inside the building; the pilot walked away alive.[78]

    The Czech composer Bohuslav Martinu, while in residence in the US wrote an orchestral scherzo in 1945 entitled P-47 Thunderbolt (H 309) in homage to the aircraft and its role in World War II.

    Other media include Thunderbolt, a 1947 color documentary film directed by John Sturges and William Wyler, featuring James Stewart and Lloyd Bridges and narrated by Robert Lowery.[79] The film Fighter Squadron (1948) depicts a P-47 Thunderbolt unit.[80]

    "Thunderbolts: The Conquest of the Reich", a 2001 television documentary presented by the History Channel. Director Lawrence Bond depicted the last months of World War II over Germany as told by four P-47 pilots of the 362nd Fighter Group using original, all color 1945 footage. The P-47 Thunderbolt was the subject of an episode of the World's Deadliest Aircraft series broadcast by the Military Channel.

    Lieutenant Colonel Robert Samuel Johnson collaborated with aviation author Martin Caidin to write his autobiographical story of the 56th Fighter Group, Thunderbolt!, in 1958. Johnson scored 27 kills in the P-47 while flying with the 56th Fighter Group.

    In 2015, it was named the state aircraft of Indiana due to its Evansville roots.[81]

    See also[]

    References[]

    Notes[]

    1. Fairchild Republic was the most recent incarnation of the original Republic aerospace company, now considered defunct.[1]
    2. The P-47 can trace its lineage back to earlier Seversky designs: P-35, XP-41, P-43 and the unbuilt P-44.[2]
    3. After a change in the board of directors, Alexander P. de Seversky was removed from the newly reorganized Republic Aviation company, with former Managing Director Wallace Kellett taking over as CEO.[4]
    4. Historians argue that the nickname "Jug" was short for "Juggernaut" when aviators began using the longer word as an alternate nickname.[19] Another nickname that was used for the Thunderbolt was "T-bolt".[20]
    5. Zemke flew a P-38 for three of his kills.[27]
    6. Quentin C. Aanenson documented his experiences flying the Thunderbolt on D-Day and subsequently in the European Theater in his documentary, A Fighter Pilot's Story (also released as Dogfight.).

    Citations[]

    1. Rummerman, Judy. "Fairchild Republic." Archived 2011-10-14 at the Wayback Machine. Centennial of Flight Commission, 2003. Retrieved: 7 August 2011.
    2. Dorr and Donald 1990, pp. 84–85, 88.
    3. 3.0 3.1 Dwyer, Larry. "Republic P-47 Thunderbolt." Aviation History Online Museum, 11 November 2010.
    4. "Alexander de Seversky, Russian Ace of World War One, Aircraft Designer & Founder of Republic Aviation." acepilots.com, 2003. Retrieved: 16 May 2009.
    5. "The Turbosupercharger and the Airplane Power Plant." General Electric, January, 1943.
    6. "P-47 Thunderbolt". TopFighters.com. Retrieved: 12 July 2006.
    7. Masefield, Peter. "First Analysis of the Thunderbolt." Flying, August 1943, p. 190.
    8. 8.0 8.1 Green 1961, p. 173.
    9. Baugher, Joe. "Republic P-47 Thunderbolt." USAAC/USAAF/USAF Fighter and Pursuit Aircraft, 18 July 1999. Retrieved: 23 January 2011.
    10. Green 1961, p. 178.
    11. World Encyclopedia of Aero Engines, 5th edition by Bill Gunston, Sutton Publishing, 2006, P.71
    12. Lake 2001, p. 143.
    13. O'Leary 1986, p. 228.
    14. Freeman 2000, p. 81.
    15. "Republic P-47M/N". http://www.aerofiles.com/JBrepub-p47mn.html.
    16. 16.0 16.1 Pearce, William. "Republic XP-47J Superbolt Fighter". https://oldmachinepress.com/2013/12/17/republic-xp-47j-superbolt/. Retrieved 25 May 2016.
    17. Warren Bodie, Republic's P-47 Thunderbolt, 1994.
    18. Gunston, Bill The Illustrated Directory of Fighting Aircraft of World War II. Salamander Books, 1988. ISBN 0-86288-672-4.
    19. Graff 2007, p. 53.
    20. Air Force Association 1998, p. 110.
    21. Bernstein, Jonathan (2012). "1" (in English). P-47 Thunderbolt Units of the Twelfth Air Force. Botley, Oxfordshire: Osprey Publishing. p. 8. ISBN 9781849086721. https://books.google.com/books?hl=en&lr=&id=T-K6CwAAQBAJ&oi=fnd&pg=PA2&dq=Republic+P-47+Thunderbolt&ots=POjdKLb7wN&sig=Mcc0iOEny8eV5-xm_RfFcLZN-r4#v=onepage&q&f=false. Retrieved February 10, 2019.
    22. Rymaszewski, Michael (July 1994). "Playing Your Aces". pp. 101–105. http://www.cgwmuseum.org/galleries/index.php?year=1994&pub=2&id=120.
    23. "Republic P-47D Thunderbolt". Archived 2007-03-24 at the Wayback Machine. Museum of Flight. Retrieved: 12 July 2006.
    24. "8th Air Force 56th FG." Archived 2006-06-12 at the Wayback Machine. U.S. Army Air Forces in World War II, 18 June 2004. Retrieved: 14 July 2006.
    25. "Francis S. 'Gabby' Gabreski". USAF Air University, Maxwell-Gunter AFB, 17 April 2006. Retrieved: 14 July 2006.
    26. Rose, Scott. "Robert S. Johnson". Warbirds Resource Group, 11 June 2006. Retrieved: 14 July 2006.
    27. "Col. Hubert 'Hub' Zemke." Acepilots.com, 29 July 2003. Retrieved: 14 July 2006.
    28. "Republic P-47D-30-RA Thunderbolt (Long Description)." Smithsonian National Air and Space Museum. Retrieved: 19 February 2017.
    29. Zaloga p.65
    30. Berliner 2011, p. 20.
    31. "Air Power History". goliath.ecnext.com. Retrieved: 06 January 2010, via Internet Archive.
    32. "RAF Thunderbolts". 7 December 1944. p. 600 (photo caption). http://www.flightglobal.com/pdfarchive/view/1944/1944%20-%202502.html.
    33. "Republic P-47D Thunderbolt II". RAF Museum. http://www.rafmuseum.org.uk/research/collections/republic-p-47d-thunderbolt-ii.
    34. Dias de Cunha, Rudnei. "Republic P-47 Thunderbolt". http://www.rudnei.cunha.nom.br/FAB/en/p-47.html. Retrieved 23 February 2019.
    35. Velasco, E. Alfonso, Jr. "Aztec Eagle – P-47D of the Mexican Expeditionary Air Force". IPMS Stockholm, 9 January 2006. Retrieved: 14 July 2006.
    36. Sgarlato 2005.
    37. Hardesty 1991, p. 253.
    38. 38.0 38.1 Gordon 2008, p. 449.
    39. http://www.aircraftresourcecenter.com/Gal13/12201-12300/gal12272-P-47-Heeps/00.shtm
    40. Merriam, Ray (2017). World War 2 in Review: Republic P-47 Thunderbolt. New York: Merriam Press. ISBN 9781365884856. https://books.google.com.au/books?id=qgbKDgAAQBAJ&pg=PT15&lpg=PT15&dq=p-47+taiwan+china&source=bl&ots=xM_rARcN_S&sig=ACfU3U0NA07hGuJsD1sTza26vSrncbeHJg&hl=en&sa=X&ved=2ahUKEwjGh5SF1NHgAhXVYisKHbe3CH8Q6AEwFHoECAsQAQ#v=onepage&q=p-47%20taiwan%20china&f=false. Retrieved 23 February 2019.
    41. Bergerud 2000, pp. 269–70.
    42. Spick 1983, p. 96.
    43. 43.0 43.1 43.2 Caldwell 2007, p. 89.
    44. Sims, Edward H. American Aces of World War II, London: Macdonald, 1958.
    45. Sims 1980, pp. 160–61.
    46. Jordan, C. C. "Pushing The Envelope With Test Pilot Herb Fisher". Planes and Pilots of WW2, 2000. Retrieved: 22 July 2011.
    47. Sims 1980, pp. 134–35.
    48. "Colonel Neel Earnest Kearby". Archived 2004-10-17 at the Wayback Machine. Air Force History, Air Force Historical Studies Office, 20 January 2004. Retrieved: 14 July 2006.
    49. Hallion, Richard (August 15, 2014) (in en). D-Day 1944 – Air Power Over The Normandy Beaches And Beyond. Pickle Partners Publishing. ISBN 978-1-78289887-0. https://books.google.com/books?id=7SBwCwAAQBAJ&lpg=PT4. Retrieved February 10, 2019.
    50. Barnes 1989, p. 432.
    51. "Achtung! Jabos! The Story of the IX TAC." Stars & Stripes, U.S. Army, 1944.
    52. Page 4 illustration of M10 triple-tube launcher, iBiblio.
    53. Dunn, Carle E. (LTC). "Army Aviation and Firepower". Archived 2008-12-23 at the Wayback Machine. Army, May 2000. Retrieved 21 November 2009.
    54. "P-47 Thunderbolt/42-19663." Warbirds Resource Group. Retrieved: 21 April 2011.
    55. "P-47 Thunderbolt/42-26450." Warbirds Resource Group. Retrieved: 21 April 2011.
    56. "P-47 Thunderbolt/42-26757." Warbirds Resource Group. Retrieved: 21 April 2011.
    57. "P-47 Thunderbolt/42-26762." Warbirds Resource Group. Retrieved: 21 April 2011.
    58. "P-47 Thunderbolt/45-49151." Warbirds Resource Group. Retrieved: 21 April 2011.
    59. "P-47 Thunderbolt/45-49219." Warbirds Resource Group. Retrieved: 21 April 2011.
    60. "P-47 Thunderbolt/45-49509." Warbirds Resource Group. Retrieved: 21 April 2011.
    61. 61.0 61.1 61.2 Lake 2002, p. 162.
    62. 62.0 62.1 62.2 62.3 62.4 Lake 2002, p. 163.
    63. 63.0 63.1 63.2 Lake 2002, p. 164.
    64. Klemen, L. "201st Mexican Fighter Squadron." The Netherlands East Indies 1941–1942. Retrieved: 26 April 2015.
    65. 65.0 65.1 65.2 65.3 Lake 2002, p. 165.
    66. "Republic F-47D-40-RE Thunderbolt". Aeronautical Museum-Belgrade. Retrieved: 23 February 2014.
    67. Baugher, Joe. "Republic P-47 Thunderbolt." USAAC/USAAF/USAF Fighter and Pursuit Aircraft, 18 July 1999. Retrieved: 10 February 2017.
    68. American Combat Planes, 3rd enlarged edition by Ray Wagner, Doubleday Publishing, 1982
    69. The American Fighter, by Enzo Angelucci and Peter M. Bowers, Orion Books, 1987
    70. War Planes of the Second World War, Fighters, Volume Four, by William Green, Doubleday Publishing, 1964
    71. United States Military Aircraft since 1909, by Gordon Swanborough and Peter M. Bowers, Smithsonian Publishing, 1989
    72. The Republic P-47D Thunderbolt, Aircraft in Profile, by Edward Shacklady, Doubleday Publishing, 1969
    73. Famous Fighters of the Second World War, Volume I, by William Green, 1967
    74. Thunderbolt: A Documentary History of the Republic P-47, by Roger A. Freeman, Motorbooks, 1992
    75. Lednicer, David. "The Incomplete Guide to Airfoil Usage". https://m-selig.ae.illinois.edu/ads/aircraft.html. Retrieved 16 April 2019.
    76. Hayward, James. "USAAF at War (1942-45): Audiobook CD on CD41 label." ltmrecordings.com. Retrieved: 6 March 2012.
    77. ISBN 1-56550-057-1
    78. Unbreakable World War II aircraft that were shot to hell—and came back. By Cory Graff Air & Space Magazine
    79. "Thunderbolt (1947)". imdb.com. Retrieved: 21 November 2009.
    80. "Fighter Squadron (1948)". imdb.com. Retrieved: 21 November 2009.
    81. "P-47 Thunderbolt Named Official State Aircraft of Indiana". WFIE-TV. June 24, 2015. https://www.14news.com/story/29399467/p-47-thunderbolt-named-official-state-aircraft-of-indiana/. Retrieved September 1, 2019.

    Bibliography[]

    • Air Force Fifty. Nashville, Tennessee: Turner Publishing (Air Force Association), 1998 (limited edition). ISBN 1-56311-409-7.
    • Barnes, Frank C. Cartridges of the World. Fairfield, Ohio: DBI Books, 1989. ISBN 978-0-87349-605-6.
    • Berliner, Don. Surviving Fighter Aircraft of World War Two: Fighters. London: Pen & Sword Aviation, 2011. ISBN 978-1-8488-4265-6.
    • Bergerud, Eric M. Fire in the Sky. Boulder, Colorado: Westview Press, 2000. ISBN 0-8133-3869-7.
    • Bodie, Warren M. Republic's P-47 Thunderbolt: From Seversky to Victory. Hiawassee, Georgia: Widewing Publications, 1994. ISBN 0-9629359-1-3.
    • Bull, Steven. Encyclopedia of Military Technology and Innovation. Westport, Connecticut: Greenwood, 2004. ISBN 978-1-57356-557-8.
    • Cain, Charles W. and Mike Gerram.Fighters of World War II. London: Profile Publications, 1979.
    • Caldwell, Donald L.; Muller, Richard R. (2007). The Luftwaffe over Germany: Defense of the Reich. London, UK: Greenhill Books. ISBN 978-1-85367-712-0.
    • Davis, Larry. P-47 Thunderbolt in Action, Squadron/Signal Publications (#67). Carrollton, Texas: Squadron/Signal Publications, 1984. ISBN 0-89747-161-X.
    • Donald, David, ed. American Warplanes of the Second World War. London: Airtime Publications, 1995. ISBN 1-84013-392-9.
    • Dorr, Robert F. and David Donald. Fighters of the United States Air Force. London: Temple, 1990. ISBN 0-600-55094-X.
    • Freeman, Roger A. 56th Fighter Group. Oxford, UK: Osprey, 2000. ISBN 1-84176-047-1.
    • Freeman, Roger A. Camouflage and Markings 15: Republic P-47 Thunderbolt U.S.A.A.F., E.T.O. And M.T.O. 1942–1945 (Ducimus Classic). London: Ducimus Books, 1971.
    • Freeman, Roger A. Thunderbolt: A Documentary History of the Republic P-47. London: Macdonald and Jane's, 1978. ISBN 0-354-01166-9.
    • Goebel, Greg. "The Republic P-47 Thunderbolt." Air Vectors, April 2009.
    • Gordon, Yefim. Soviet Air Power in World War 2. Hinkley, UK: Midland/Ian Allan Publishing, 2008. ISBN 978-1-85780-304-4.
    • Graff, Cory. P-47 Thunderbolt at War (The At War Series). St. Paul, Minnesota: Zenith Press, 2007. ISBN 978-0-7603-2948-1.
    • Green, William. Fighters Vol. 2 (Warplanes of the Second World War). New York: Doubleday and Company Inc., 1961.
    • Guillemin, Sébastien. Republic P-47 Thunderbolt (Les Materiels de l'Armée de L'Air 4) (in French). Paris: Histoire et Collections, 2007. ISBN 978-2-915239-90-4.
    • Gunston, Bill. Aircraft of World War 2. London: Octopus Books Limited, 1980. ISBN 0-7064-1287-7.
    • Hagedorn, Dan. Republic P-47 Thunderbolt: The Final Chapter: Latin American Air Forces Service. St. Paul, Minnesota: Phalanx Publishing Co. Ltd., 1991. ISBN 0-9625860-1-3.
    • Hardesty, Von. Red Phoenix: The Rise of Soviet Air Power 1941–1945. Washington, D.C.: Smithsonian Institution, 1991 (first edition 1982). ISBN 0-87474-510-1.
    • Hess, William N. P-47 Thunderbolt (Warbird History). St. Paul, Minnesota: Motorbooks International Publishers, 1994. ISBN 0-87938-899-4.
    • Lake, Jon. "P-47 Thunderbolt Part 1: Early development and combat in the ETO". International Air Power Review, Volume 1, Summer 2001. Westport, Connecticut: AIRtime Publishing. pp. 138–69. ISSN 1473-9917.
    • Lake, Jon. "P-47 Thunderbolt Part 2: Final developments and combat in the Mediterranean, Far East and Pacific". International Air Power Review, Volume 7, Winter 2002. Westport, Connecticut: AIRtime Publishing. pp. 128–65. ISSN 1473-9917. ISBN 1-880588-48-X.
    • Mondey, David. The Concise Guide to American Aircraft of World War II. London: Chartwell Books, 1994. ISBN 0-7858-0147-2.
    • O'Leary, Michael. USAAF fighters of World War Two in action. London: Blandford Press, 1986. ISBN 0-7137-1839-0.
    • Ryan, Cornelius. A Bridge Too Far. New York: Simon & Schuster, 1974. ISBN 978-0-445-08373-8.
    • Scutts, Jerry. Republic P-47 Thunderbolt (Combat Legend). Ramsbury, Wiltshire, UK: Airlife Publishing, 2003. ISBN 1-84037-402-0.
    • Sims, Edward H. Fighter Tactics and Strategy 1914–1970. Fallbroock, California: Aero publisher, 1980. ISBN 0-8168-8795-0.
    • Sgarlato, Nico and Giorgio Gibertini. "P-47" (in Italian). I Grandi Aerei Storici n.14, January 2005. Parma, Italy: Delta Editrice. ISSN 1720-0636.
    • Spick, Mike. Fighter Pilot Tactics. The Techniques of Daylight Air Combat. Cambridge, UK: Patrick Stephens, 1983. ISBN 0-85059-617-3.
    • Panzer IV vs Sherman: France 1944 by Steven Zaloga
    • Stoff, Joshua. The Thunder Factory: An Illustrated History of the Republic Aviation Corporation. London: Arms & Armour Press, 1990. ISBN 1-85409-040-2.

    The initial version of this article was based on a public domain article from Greg Goebel's Vectorsite.

    External links[]


    All or a portion of this article consists of text from Wikipedia, and is therefore Creative Commons Licensed under GFDL.
    The original article can be found at Republic P-47 Thunderbolt and the edit history here.
    Advertisement
